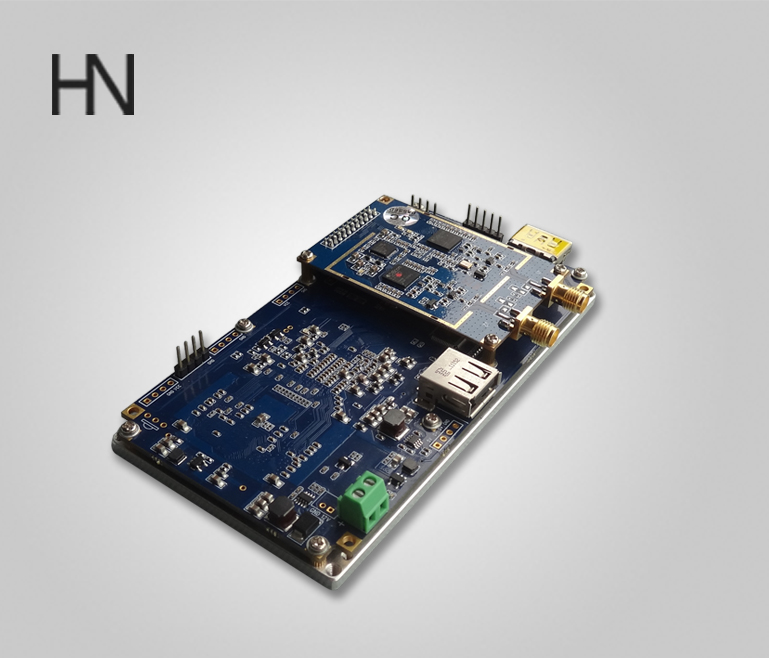

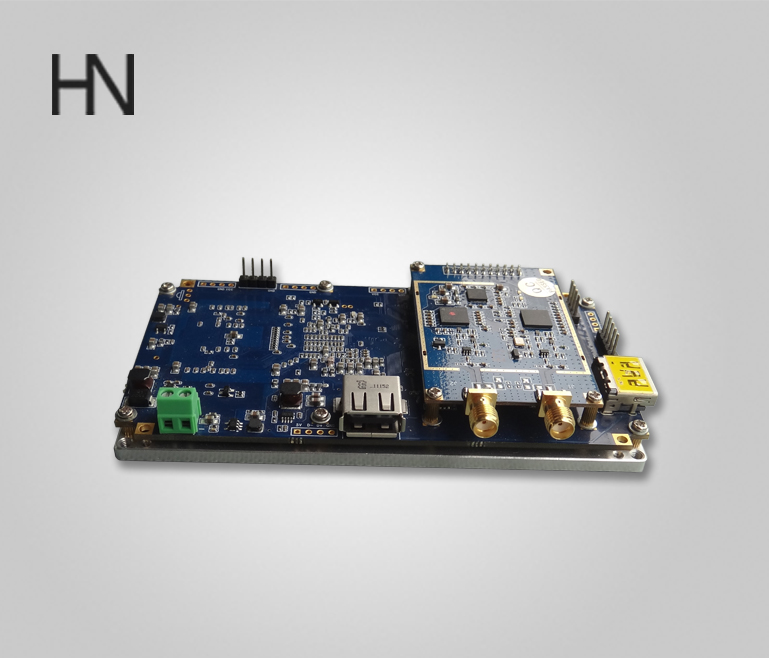

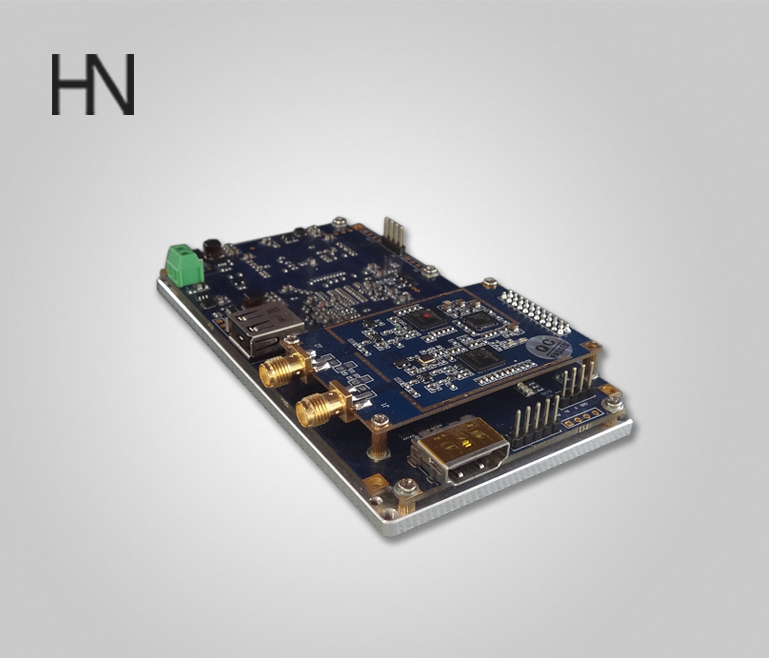

H.264 Cofdm RX module
  • Description
  • Feature
  • Specification
  • Accessories
  • Using the support of non line of sight (NLOS) transmission and COFDM multi-carrier modulation technology, with low latency and high efficiency H.264 compression coding method, to improve the coding efficiency and reduce the coding delay, optimization algorithm, anti error rate and further improve the image quality,at the lowest rate to achieve the best image compression. Using advanced video pre-processing technology and efficient video coding algorithm, to provide high quality and low rate of broadcast audio and video signal transmission for high-definition digital television broadcasting system, mobile TV system, IPTV system, making it easy to manage the network expansion problems, greatly enhance the utilization of the available bandwidth, effectively save transmission costs for operators.


  • SK-620 Specifications


    Model

    SK-620

    DC input range

    DC 6~17V

    Working current

    420mA_12V

    Receive sensitivity

    -104dBm/2MHz

    Video output

    CVBS:Support D1 SD resolution

    HDMI:Support HD1080P,720P,576,480

    Channel bandwidth

    2/2.5/4/8MHz

    Radio Frequency

    300~860MHz,Stepping 1MHz (other frequencies on request)

    RF interface

    SMA

    Decryption

    AES 128(dynamically adjustable encryption key)

    Decoding

    MPEG2/H.264

    Demodulation

    COFDM

    Parameter control mode

    Through LCD display panel to set the relevant parameters

    Dimensions

    120mm*65mm*10mm

    Bolt hole spacing

    115mm*53mm
