H.264 TDD-COFDM TX
  • Description
  • Feature
  • Specification
  • Accessories

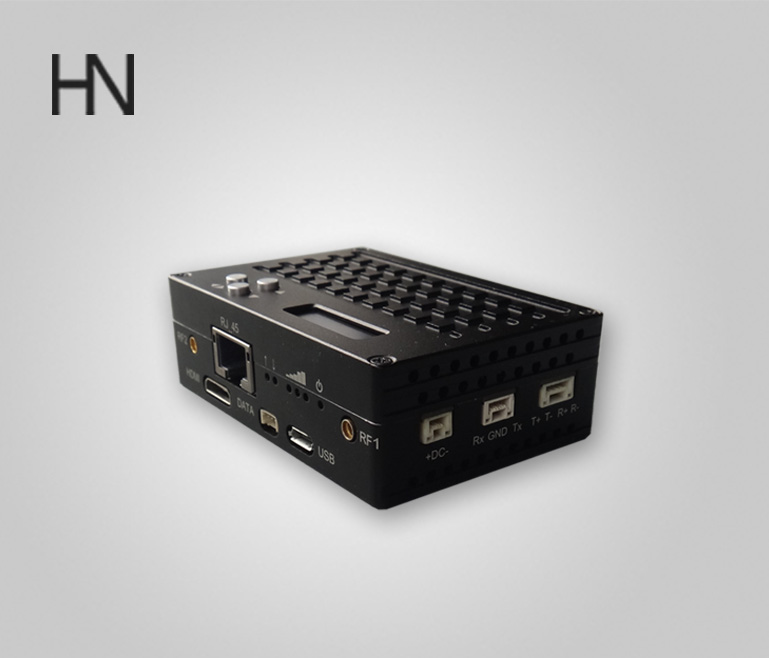

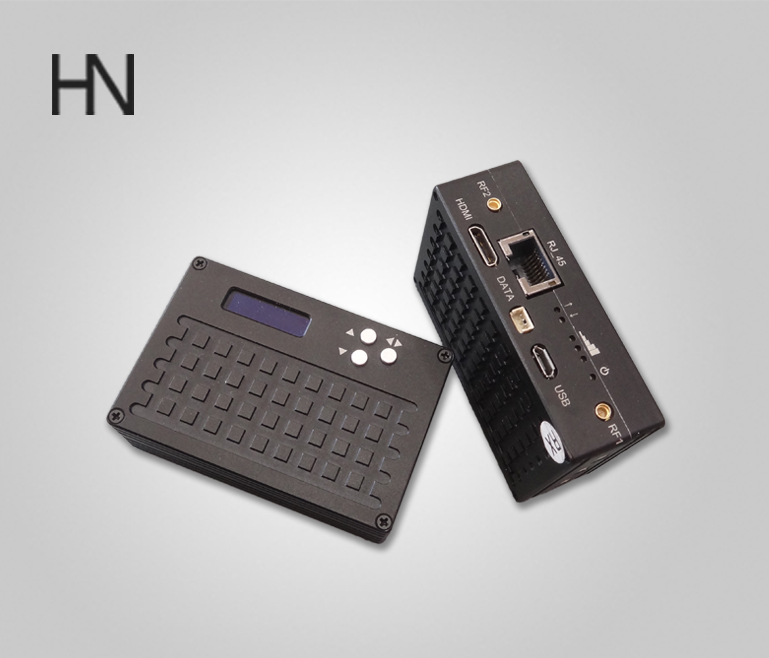

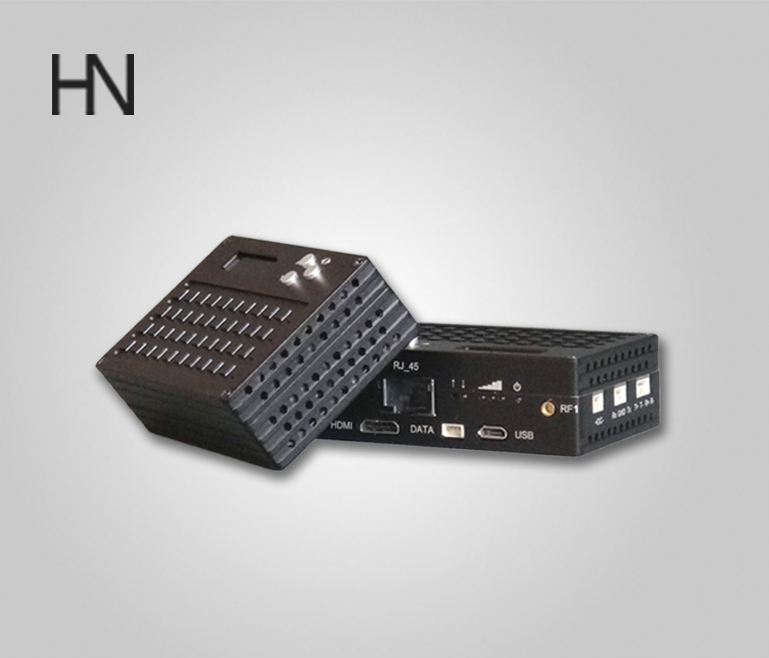

  • HN-550 H.264 TDD_COFDM this product is our company released latest zero-latency H.264 1080P HD wireless transmission equipment,

    the use of advanced time division processing technology and leading COFDM modulation technology,

    providing a complete two-way data transmission channel (supports AES_128 encryption),

    and ultra-low latency (20ms) high-definition video transmission channel,

    the perfect realization of real-time,high-speed mobile data, audio and video transmission.

  • Support up to 20Mbps data flow, adaptive dynamic stream allocation technology
    Support multiple bandwidth regulation (2M/4M/8/), adaptive modulation and manual modulation mode selection
    Support diversity antenna receiver
    Support 128 bit AES encryption
    Support transparent PTP&PMD network transmission technology
    Support non line of sight (NLOS), high-speed mobile transmission
    Provide standard RS-232 & RS-485 + RJ45 + Mini HDMI interface
    High definition OLED panel digital display, simple interface easy to operation
    Small size, light weight, low power consumption










  • Technical parameters:

    Model

    HN-550TX & HN-550RX

    Power input

    DC 7~17V

    Power consumption

    12V_1A (full load maximum output power)


    Ethernet

    10/100 BaseT、Auto-MDI/X、IEEE 802.3

    TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS

    Video input

    Mini HDMI interface, RJ45


    Data input

    RS-232&RS-485

    RJ45

    Output frequency

    2405MHz-2477MHz,Step 1MHz adjustable

    Output power

    0dbm,20dBm-30dBm

    RF Antenna interface

    MMCX

    Bandwidth

    2.0 MHz /4.0MHz/8.0MHz

    Encryption

    128 bit AES

    Correction mechanism

    32 bit of CRC,ARQ

    Modulation

    TDD-COFDM,Time division duplex mode

    Video encoding

    H.264

    Parameter control

    By adjusting the parameters of OLED control panel

    Dimensions

    77mm*51mm*24mm

    Weight

    120g
