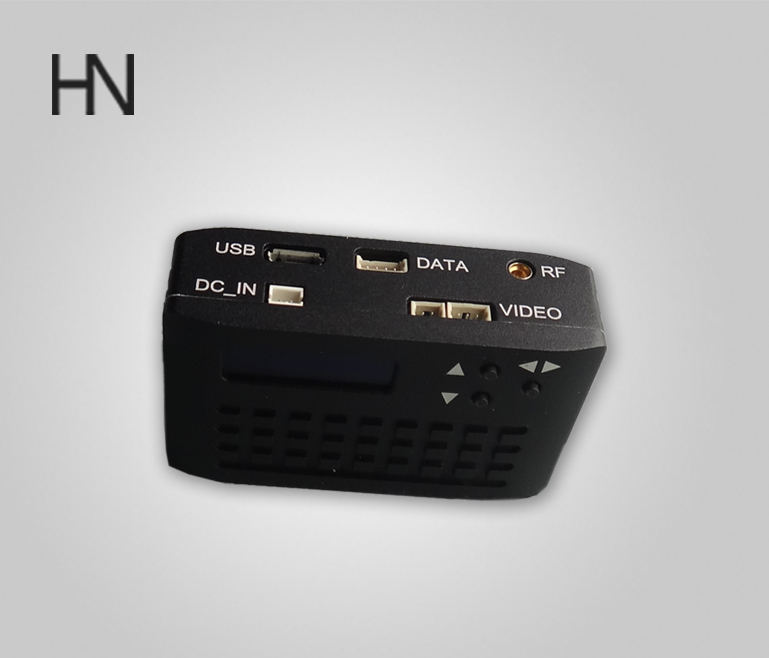

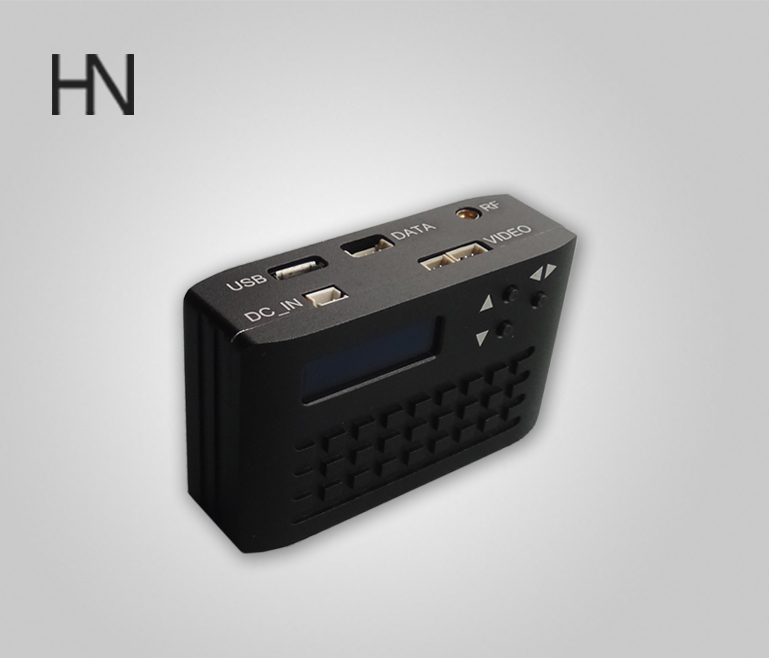

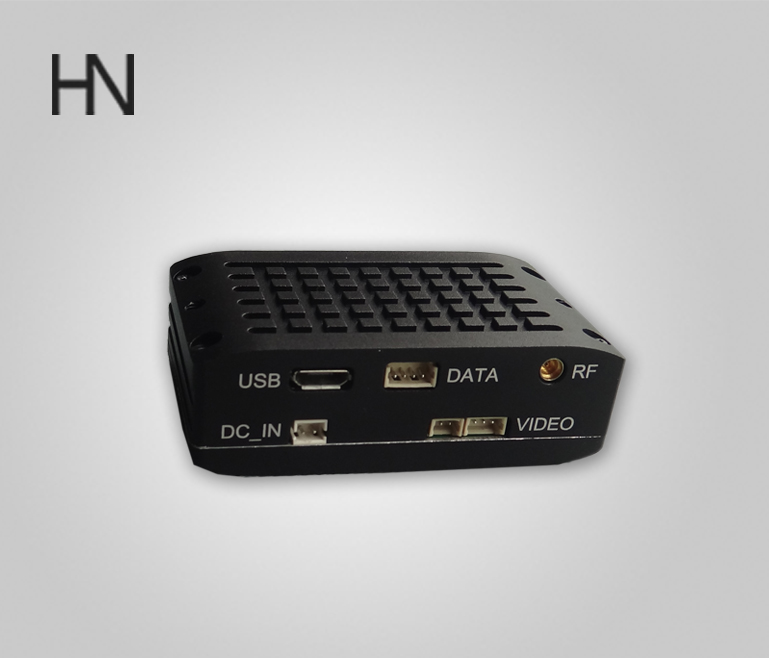

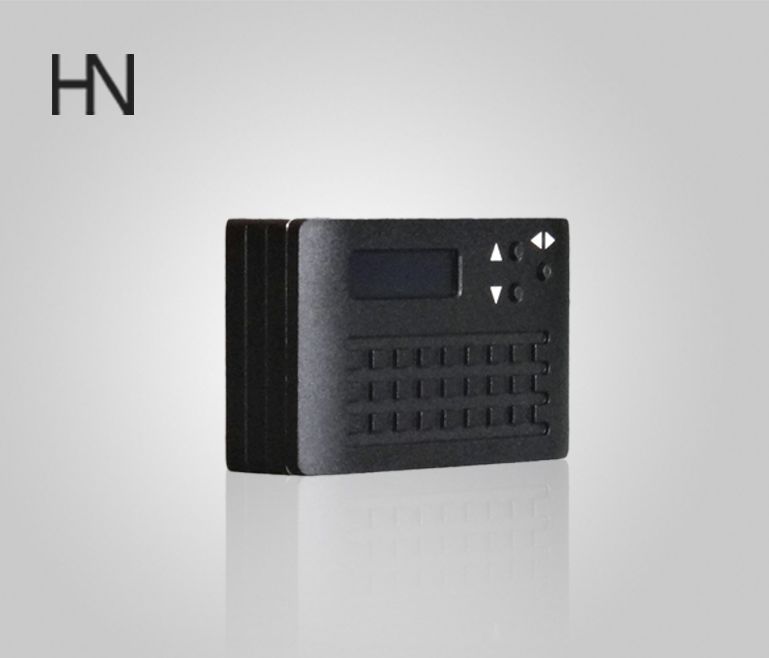

HN-510 Micro COFDM Transmitter: This product is our company's latest micro COFDM 720P HD wireless video transmission equipment,
using advanced video pre-processing technologies and efficient video coding algorithms, the device have refined on the improve of coding efficiency,reduced coding delay,algorithm optimization,anti-error rate and improve the quality of video, it can be used the lowest rate to achieve the best image compression.
|
Model |
HN-510 |
|
Voltage |
DC12V |
|
Power consumption |
5W |
|
Video input |
HDMI: support 720P, D1 standard resolution CVBS：NTSC 640×480 PAL 720×576 |
|
output frequency |
300MHz/2500MHz (other frequency on request) |
|
Bandwidth |
1/2/3/4/5/6/7/8MHz |
|
output power |
20dBm/100mw |
|
Modulation |
COFDM |
|
Modulation mode |
QAM4,QAM16,QAM64 |
|
RF interface |
MMCX |
|
FEC |
1/2,2/3,3/4,5/6,7/8 |
|
Carries |
2K |
|
Guard Interval |
1/32,1/16,1/8,1/4 |
|
Video processing method |
H.264/MPEG-2 |
|
Parameter control mode |
Through the control panel to set the relevant parameters(or external serial port) |
|
Operating temperature |
-20℃～75℃ |
|
Dimensions |
60m*36mm*19mm |
|
weight |
58g |
