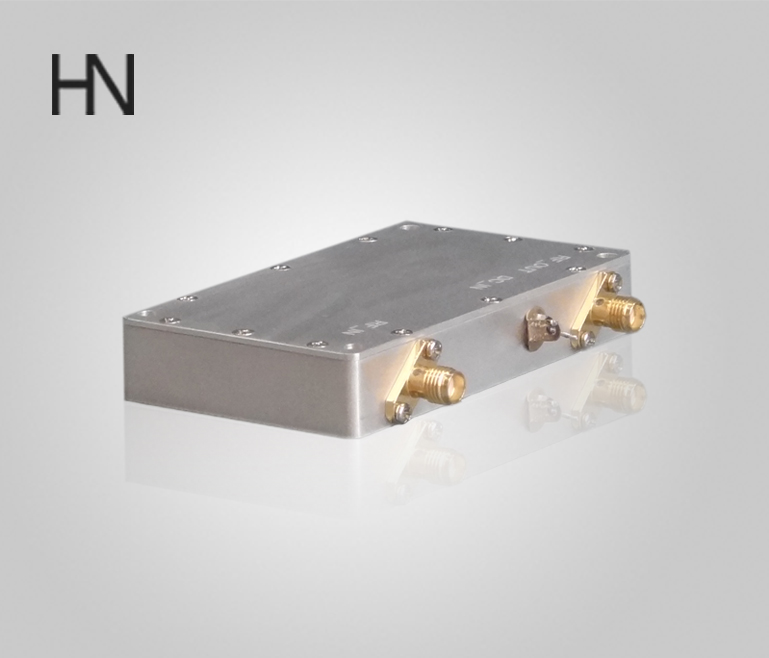

Apperance and installation instructions
1,Outline dimension:84*48*19mm (Without socket)
2,Interface type：
①Power Supply：+12V Core capacitance
②RF input interface：SMA-50KFD
RF output interface：SMA-50KFD
3,Mounting hole diameter: 4 mounting holes left four Φ3.5 through holes for installation.
|
Test Item |
Index |
Note |
|
|
Power amplifier |
Working Frequency (MHz) |
800MHz+50MHz |
|
|
Max output power(dBm) |
32dBm±1dBm |
(No ALC control) |
|
|
Passband group delay（ns） |
≤50ns |
|
|
|
Gain(dB) |
40dB±1dB |
|
|
|
Passband Fluctuation |
≤1dB |
（Peak to peak value） |
|
|
Input level(dB) |
-8dB |
|
|
|
Shoulder ratio(dBc) |
≤-30dBc |
|
|
|
Operating voltage |
+11V～+17V Vdc |
|
|
|
Working current |
≤1.2A_12V |
|
|
|
Working temperature |
-20～+70℃ |
|
|
|
Interface type |
SMA-50KFD |
|
|
|
Weight |
100g |
|
|
|
Module dimensions(mm) |
84*48*19mm |
Without joint |
|
