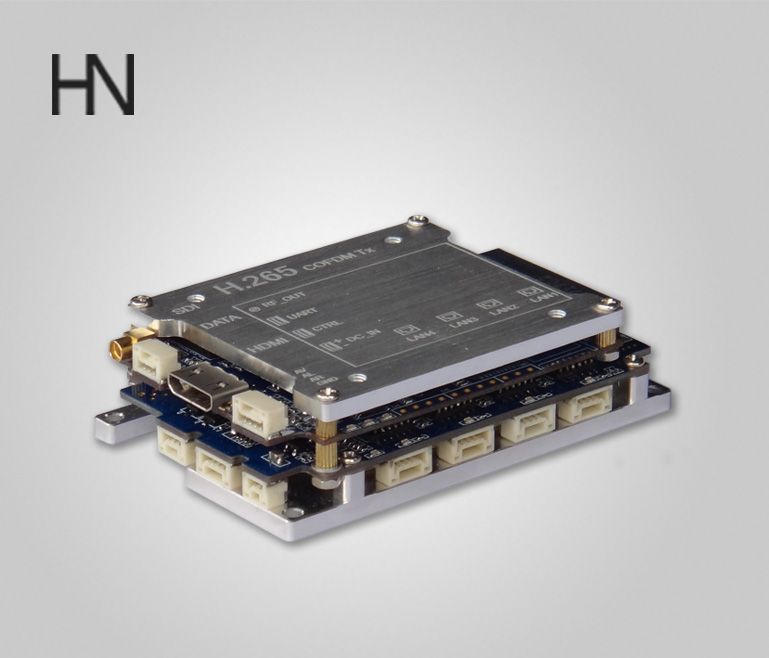

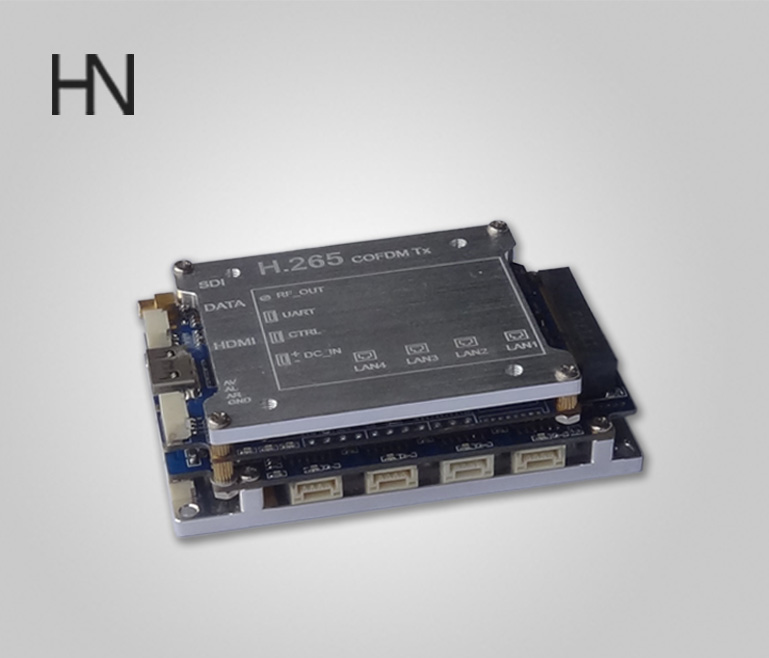

SK-710 H.265 HD COFDM is the latest COFDM transmission module that supports multi-channel IP input, supports full-featured interface(HDMI/SDI/CVBS), and supports NLOS transmission.The use of the highly efficient and innovative H.265 compression coding method has resulted in fruitful improvement and improvement in improving coding efficiency, reducing coding delay, algorithm optimization, anti-error rate, and further improving image quality. It can achieve the best image compression at the lowest code rate. The effect can support the input of multiple IP video streams of UDP specifications at the same time. It is very simple to realize multi-channel video transmission at the same time through a transmitter using a single frequency to transmission.
This module uses a highly integrated embedded design, ultra-linear digital predistortion RF design, high-definition coding, digital modulation, full-band RF output in one, supports narrowband (1MHz), low latency, transparent data Long-distance transmission applications,It can help you to complete the design of long-distance wireless links more conveniently and quickly, provide high-definition digital broadcasting, security systems, public security, armed police, fire-figting and other fields of applications, widely used in multi-channel video streaming, high standard unmanned control system, intelligent control equipment
●H.265 high-efficiency full HD 1080p compression encoding
●Full-featured interface, HDMI/SDI/CVBS
●COFDM ultra-narrow band modulation technology
●Supports 4-way UDP unidirectional network video stream for simultaneous transmission
●Support full-band / ultra-narrow band / multi-bandwidth modulation (1M/2M/4M/8M)
●Support transparent network/serial port high rate transmission
●Adaptive multi-video format input
●Configuration menu real-time preset
●Supports military-grade non-standard 128-bit dynamic AES encryption
●Highly integrated modular combination design
●Small size, light weight, easy to carry, using heat sink aluminum chassis
|
Model |
SK-710 |
|
DC input range |
DC 6~17V |
|
Working Current |
700mA_12V/8.5W |
|
Video input |
SDI/HDMI/CVBS |
|
UATR interface |
Transparent TTL serial port unidirectional data transmission |
|
LAN port |
4*UDP port |
|
Date Rate |
30Mbits/S_RJ45 & 115200bps_RS232 |
|
Channel bandwidth |
1/2/4/8M |
|
Operating frequency |
300MH~2500MHz stepping 1MHz |
|
Encryption |
Dynamic 128 bit AES |
|
FEC |
1/2,2/3,3/4,5/6,7/8 |
|
Guard interval |
1/32,1/16,1/8,1/4 |
|
video encoding |
H.265 |
|
Modulation |
COFDM,QPSK,QAM16,QAM64 |
|
RF interface |
IPX |
|
parameter control mode |
Setting related parameters by control pannel |
|
Dimension |
78mm*48mm*20mm |
|
Weight |
115g |
