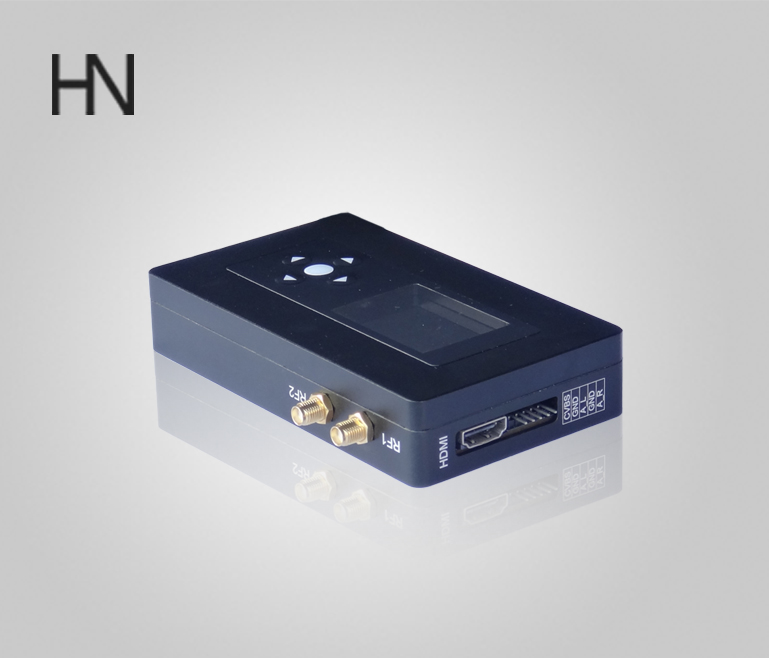

HN-320 HD H.264/MPEG2 COFDM Wireless video transmission Receiver. Using advanced multi-carrier diversity reception technology.Support high-speed movement and non-line of sight reception.Simple and efficient to use control interface.It’s can simultaneously output multiple video including HD and SD video.Widely used in security, fire fighting, radio and television, emergency communications and ect.Receiving wireless signals,realize the remote video transmission and monitoring under the condition of mobile non line-of-sight.
●Support COFDM model H.264/MPEG2 full-featured video decoding
●Support NLOS,High-speed movement transmission
●Digital operation panel and display,easy to use
●Support dual antenna multi-carrier diversity reception
|
Model |
HN-320 |
|
Voltage |
DC 6~15V |
|
Current |
330mA_12V |
|
Receive sensitivity |
-104dBm/2MHz |
|
Video output |
CVBS:Support D1 SD resolution |
|
HDMI:Support HD1080、720P、576、480 |
|
|
Bandwidth |
2/2.5/4/8MHz |
|
Radio frequency |
300MHZ—860MHz，stepping 1MHz |
|
RF input |
SMA,diversity reception |
|
Decryption |
128bit AES |
|
Decoding |
MPEG2/H.264 |
|
Demodulation |
COFDM |
|
Parameter control mode |
Through the LCD display panel to set the related parameters |
|
Dimension |
125mm*73mm*26mm |
