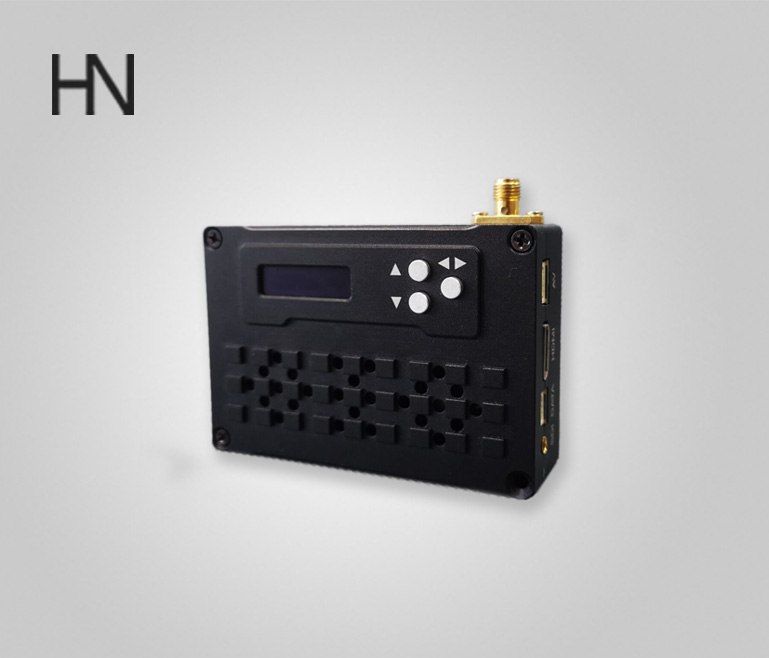

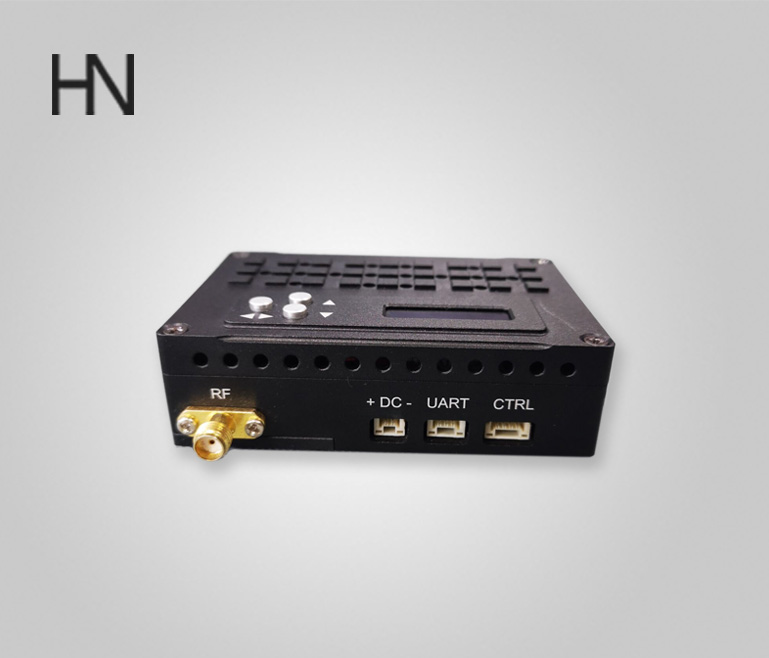

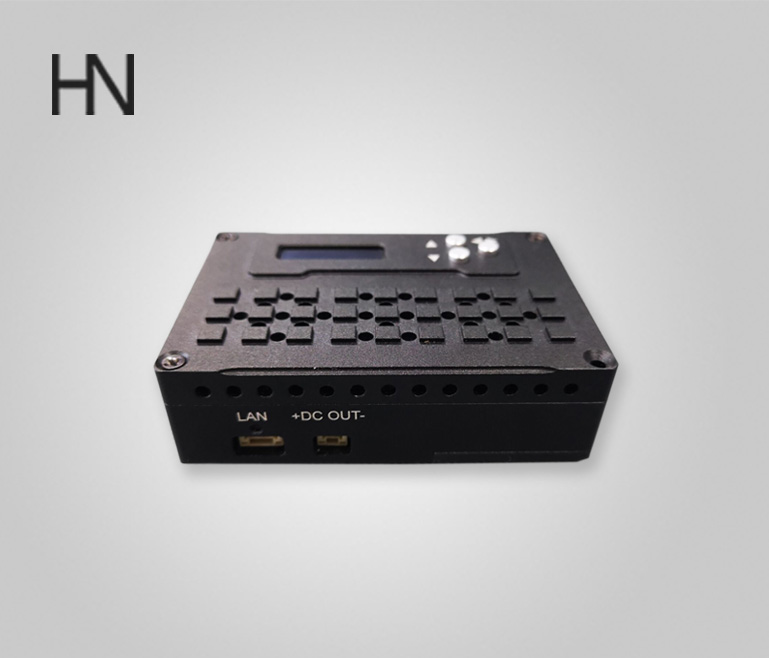

HN-710 H.265 HD COFDM is the latest COFDM video transmitter that supports multi-channel IP input, supports full-featured interface (HDMI/SDI/CVBS) with COFDM transmission in a small, lightweight chassis.It uses a highly integrated embedded design, ultra-linear digital predistortion RF design, high-definition coding, digital modulation, full-band RF output, supports narrowband (1MHz), low latency, transparent data long range transmission applications,improve the reliability in non-line-of-sight and complex environments.

HN-710 supports video/audio/data transmission with selectable modulations bandwidths of 1, 2, 4 and 8MHz,the video quality has been greatly improved compared to other encoders by using advanced features of the H.265 encoder.HN-710 has a simple and user-friendly LCD control panel. The user interface allows quick control of preset selection, RF power, bandwidth, RF frequency,modulator and ect.

The HN-710 transmitter is capable of AES encryption, making it ideal for high-definition digital broadcasting,public security monitoring, covert surveillance, public security, armed police, fire-figting and other secure transmission applications,widely used in multi-channel video streaming, high standard unmanned control system, intelligent control equipment.

H.265 high-efficiency full HD 1080p compression encoding

Full-featured interface, HDMI/SDI/CVBS

COFDM ultra-narrow band modulation technology

Supports one way UDP unidirectional network video stream

Support full-band/ultra-narrow band /multi-bandwidth modulation (1MHZ/2MHZ/4MHZ/8MHZ)

Support transparent network/serial port high rate transmission

Adaptive multi-video format input

Configuration menu real-time preset

Supports 128-bit dynamic AES encryption

Highly integrated modular combination design

Compact size, light weight, easy to carry, using heat sink aluminum chassis
