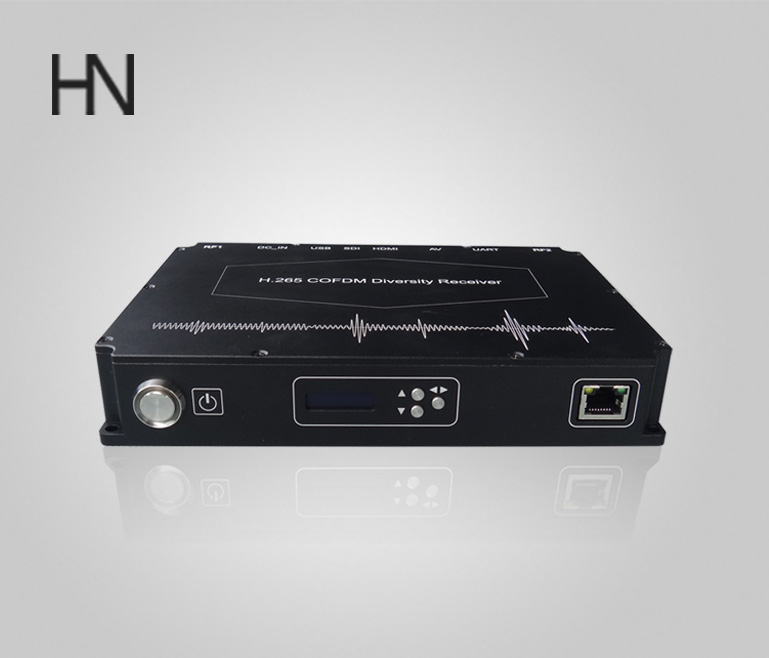

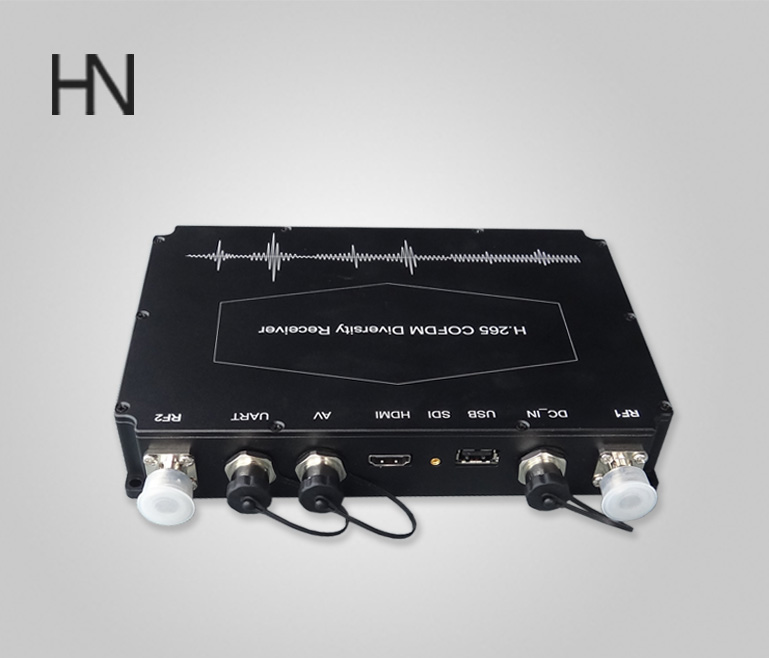

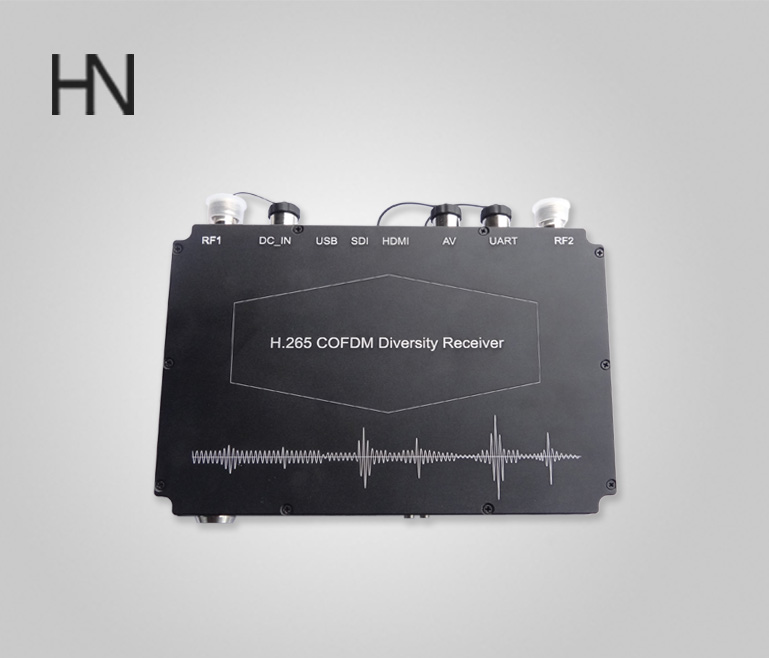

HN-840HD H.265/H.264 IP COFDM Rx HD video receiver, this product has HDMI output interface, CVBS analog audio and video output interface,USB interface,SDI interface,RJ45 interface.The use of non-line-of-sight (NLOS) transmission COFDM multi-carrier demodulation technology, the use of transparent data interface to provide balanced and stable high-speed rate,support UDP (unicast and multicast) protocol. Receive TS stream from the encoder,can set video output resolution according to different needs, highly integrated embedded design. It can help you to complete the design of long-distance wireless links more conveniently and quickly,making it ideal for high-definition high-definition digital broadcasting,security systems, public security, armed police, firefighting and other fields. It is widely used in multi-channel video streaming, unmanned control systems with high standards, intelligent control equipment.
COFDM ultra-narrowband demodulation technology
Support H.264/H.265 full-featured image decoding in COFDM mode
Support full-band/ultra-narrow band/multi-bandwidth modulation(1M/2M/4M/8MHZ)
|
Model |
HN-840 |
|
DC input range |
DC 6~17V |
|
Current |
mA_12V |
|
Video output |
CVBS:SD analog video output |
|
SDI:HD digital video output(option) |
|
|
HDMI:HD digital video output |
|
|
Working frequency |
300MHz~860MHz/1.1~2.5GHZ,Steeping1MHz |
|
Channel bandwidth |
1/2/4/8MHZ |
|
Reverse audio input |
2 channels |
|
Audio output |
2 Channels |
|
RJ_45 |
1*RJ_45 |
|
DATA |
Transparent TTL serial data transmission |
|
TS flow protocol |
Supports UDP (unicast/multicast) protocols |
|
USB interface |
Video recording |
|
Decryption method |
Dynamic 128 bit AES |
|
Video decoding |
H.264/H.265 |
|
Demodulation |
COFDM |
|
Parameter control method |
Set related parameters through LCD panel |
|
Dimension |
120*65*27mm |
