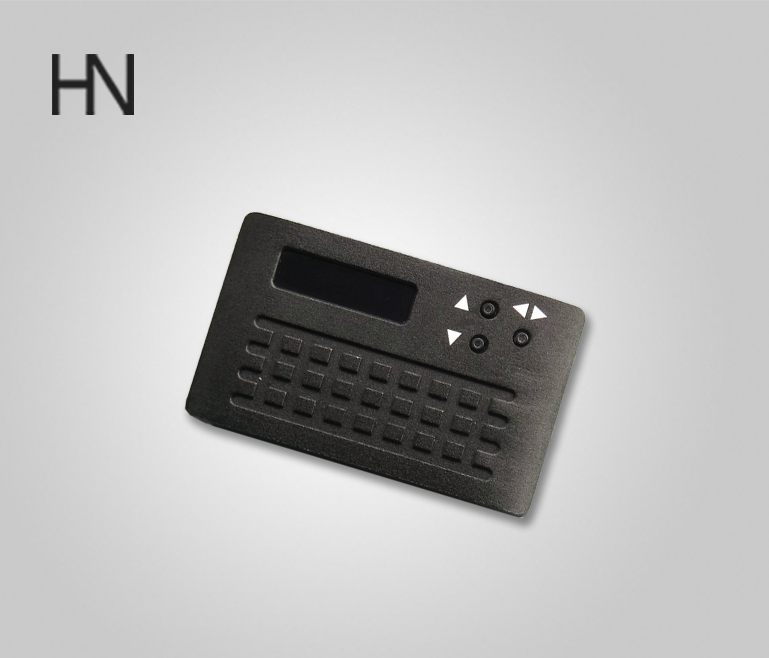

HN-711 H.265 COFDM 1080P Micro high definition wireless video transmission equipment,Using the support of non line of sight
(NLOS) transmission and COFDM multi-carrier modulation technology. Using the latest H.265 compression coding method, to improve
the coding efficiency and reduce the coding delay, optimization algorithm,anti error rate and further improve the image quality,
at the lowest rate to achieve the best image compression.Highly integrated embedded design,super linear digital predistortion
(Digital Predistortion) RF design, setting network, modulation and demodulation, full frequency RF output in one.It can help you to
complete the design of long distance wireless link more conveniently and quickly, and provide high definition digital broadcasting,
security system, public security, armed police, fire-fighting and other fields.It is widely used in multi-channel video stream transmission,
high standard unmanned control system and intelligent control equipment.
Technical characteristics
|
Model |
HN-711 |
|
DC input range |
DC 6V - 17V |
|
Working current |
550mA_12V/6.6W |
|
Video input |
Mini HDMI：1080P/720P |
|
Bandwidth |
1/2/4/8MHz |
|
Radio Frequency |
300MHz - 1500MHz,stepping 1MHz （other frequencies on request ） |
|
Output Power |
24dBm/200mW(can customized) |
|
RF interface |
MMCX |
|
Encryption |
Dynamic 128 bit AES |
|
DATA |
Transparent TTL serial data transmission |
|
FEC |
1/2、2/3、3/4、5/6、7/8 |
|
Guard Interval |
1/32、1/16、1/8、1/4 |
|
Carries |
2K |
|
Video encoding |
H.265 |
|
Modulation |
COFDM |
|
Constellation |
QPSK、QAM16、QAM64 |
|
Parameter control mode |
Through OLED display panel to set the relevant parameters |
|
Dimensions |
60mm*36mm*19mm |
|
Weight |
58g |
